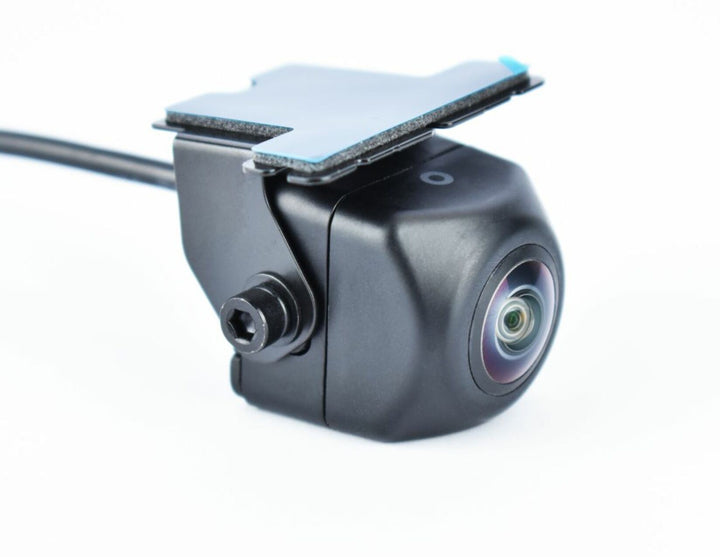

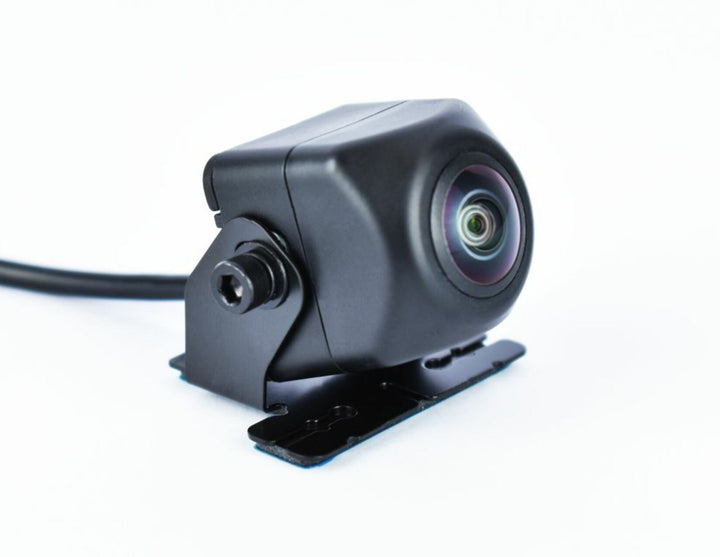

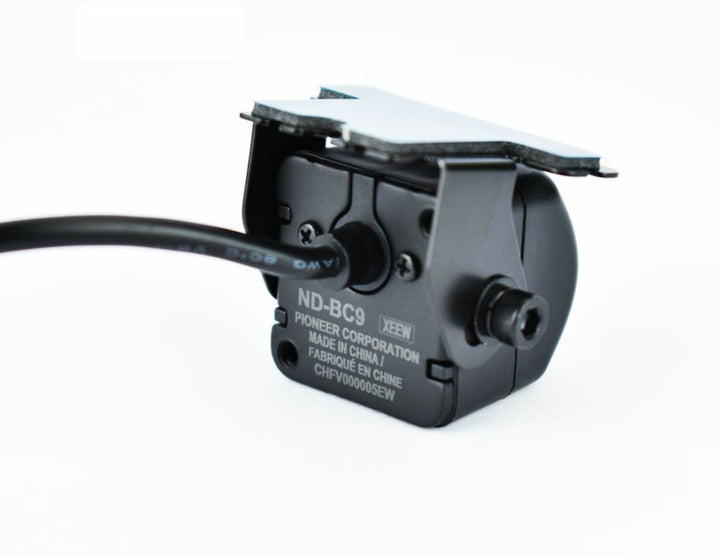

PIONEER* REAR VIEW CAMERA ND-BC9 FOR PIONEER RADIOS AND MULTIMEDIA SYSTEMS
The handy rear-view camera helps to detect obstacles behind your vehicle by giving you a view on a screen in front. The system activates automatically when you select reverse gear helping you to manoeuvre into the smallest of spaces.
High-precision, high-resolution NTSC universal colour camera, it gives you an overview of everything the rear view mirror doesn't show. The wide viewing angle offers a 159° horizontal and 117° vertical view, and the integrated CMOS sensor automatically adjusts brightness to the ambient light.
Ford recommends that you use a qualified technician to fit parts. Damage owing to incorrect fitment is not covered under warranty.
- Camera housing colour: matt black
- Includes a 10 m (3 m + 7 m) cable
- Compatible with any CVBS rear camera input
- Sensor type: 1/4" CMOS
- Video system: NTSC
- Pixels: 0.3 m - 310,000 p 350 tv lines
- Power supply: 14.4 V DC (10.8 V to 15.1 V)
- Power consumption: <100 mA - 14.4 V
- Operating temperature: -30° to +70° C
- Mirrored image: yes
- Waterproof: IP67
- Camera weight: 188 g
These are products that require specialist knowledge and/or special tools for installation. The products are not intended for self-assembly without this specialist knowledge. If necessary, please contact an authorized Ford service centre or another qualified specialist workshop regarding installation.
