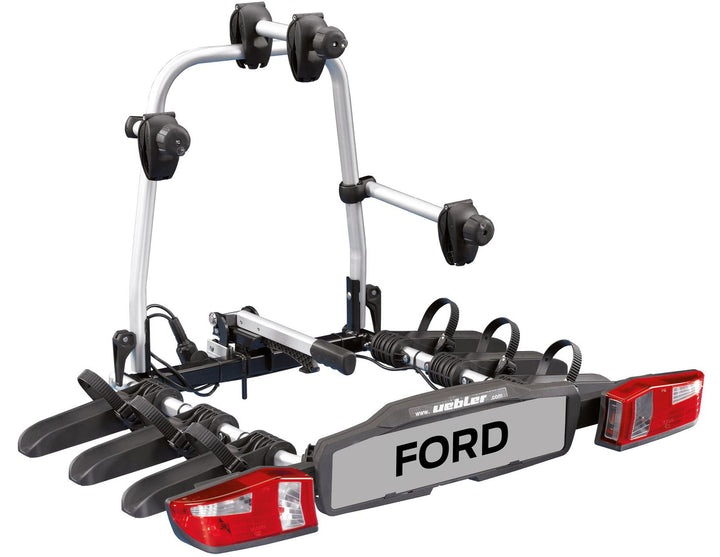

UEBLER* REAR BIKE CARRIER F32,FOR UP TO 3 BIKES
Product No. 2007529
£443.34
In stock and ready to ship.
Tow-bar mounted bike-carrier allows you to transport your bike conveniently, with minimal l...
Always free and tracked shipping service on orders over £25
Hassle free returns

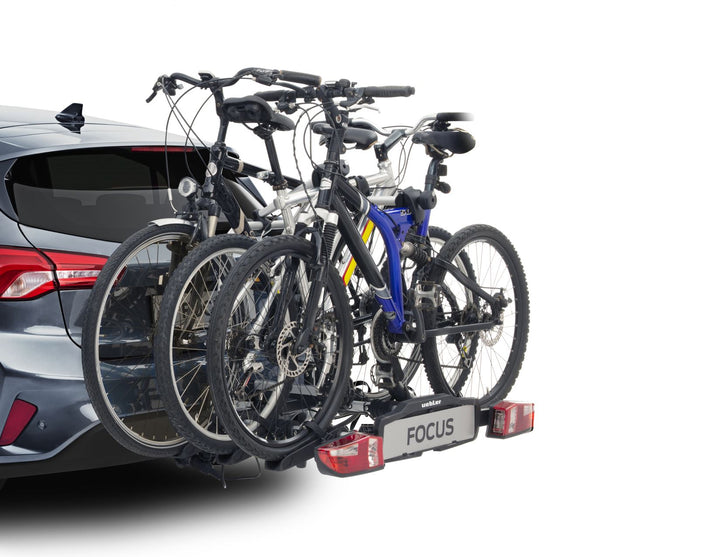

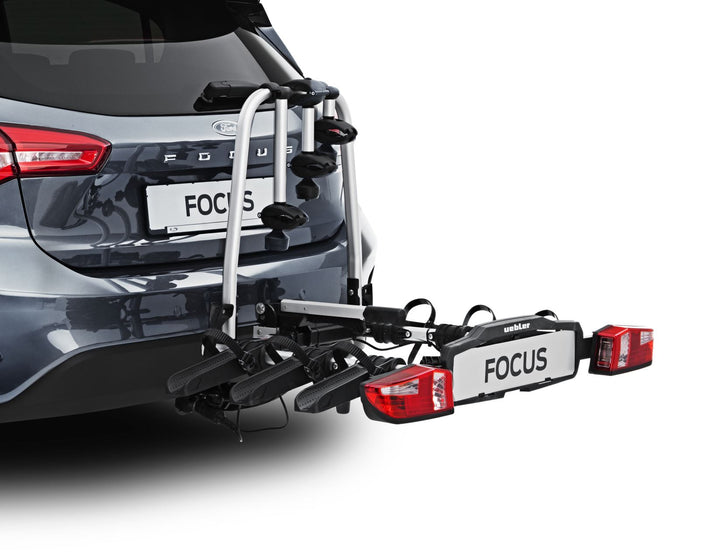

Tow-bar mounted bike-carrier allows you to transport your bike conveniently, with minimal lifting.

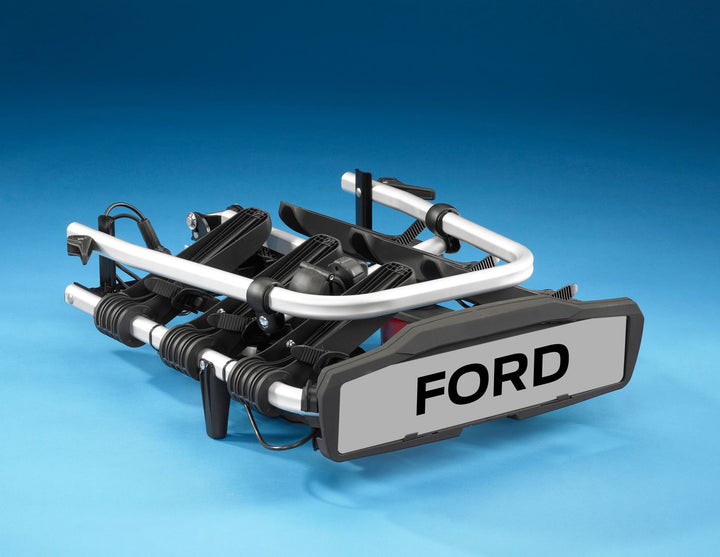

Small and lightweight tow bar mounted bike carrier for 3 bikes. Due to its patented folding system tail lights, bicycle holders and support frame can be easily and completely folded. Carrier is lockable to the tow bar and bikes are also lockable to the carrier.
Always check the vehicle owner's manual or the specifications sticker on the vehicle for the maximum recommended vertical tow bar load. Take care when tilting the carrier with loaded bikes. Projecting parts such as the handlebars may touch the ground.
Please note: The gross weight mounted on the tow bar (weight of accessory product and its load together) is not allowed to exceed the permitted nose weight limit
- Size: 770 x 1180 x 790 mm, Size folded: 250 x 650 x 740 mm
- Maximum bicycle wheel hub distance: 1300 mm
- Weight: approximately 14 kg, including 13 pin adapter
- 30 kg load capacity for each bike
- Suitable for bicycle frames up to a diameter of 75 mm round and 75 x 45 mm oval
- Also suitable for E-Bikes
- Maximum vertical load: 54 kg from 75 kg tow bar load and a D-Value 6.7 kN
- Maximum vertical load: 35,5 kg under a tow bar load of 75 kg and a D-Value of 6.7 kN
- Maximum vertical load under a D-Value of 6.7 kN or a tow bar load under 50 kg not permissible
These are products that require specialist knowledge and/or special tools for installation. The products are not intended for self-assembly without this specialist knowledge. If necessary, please contact an authorized Ford service centre or another qualified specialist workshop regarding installation.
