LAPP* MOBILITY DOCK CHARGING ADAPTOR FOR BRITAIN AND IRELAND
The mobility dock is designed for charging from a standard domestic household power socket. It uses the vehicle’s existing mode 3 charging cable which is connected between the car and the mobility dock, which is then connected to the mains power. The mobility dock has a range of functions including essential overcurrent protection, excess temperature monitoring and user protection.
Please note: The Mobility Dock Charging Adaptor is designed for operating in power grids with neutral wire only.

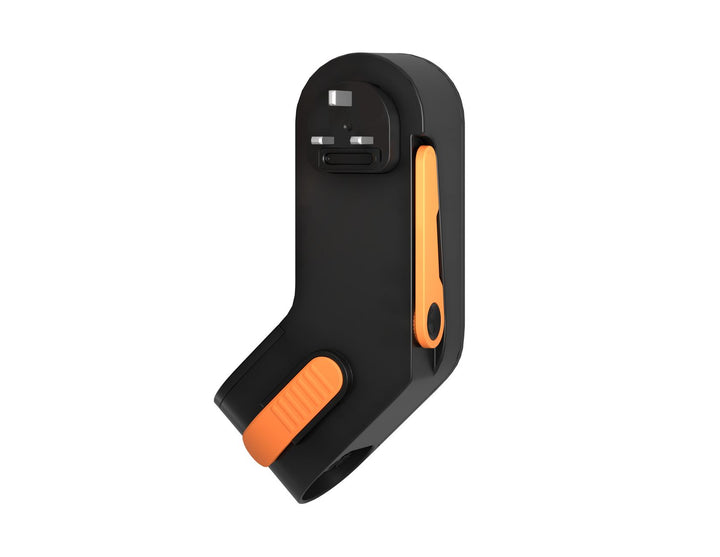

- Type G power connector (charging current 10A , 1-phase, 230V)
- Mode 2 charging in compliance with IEC 61851
- In-cable control and protection device in compliance with IEC 62752

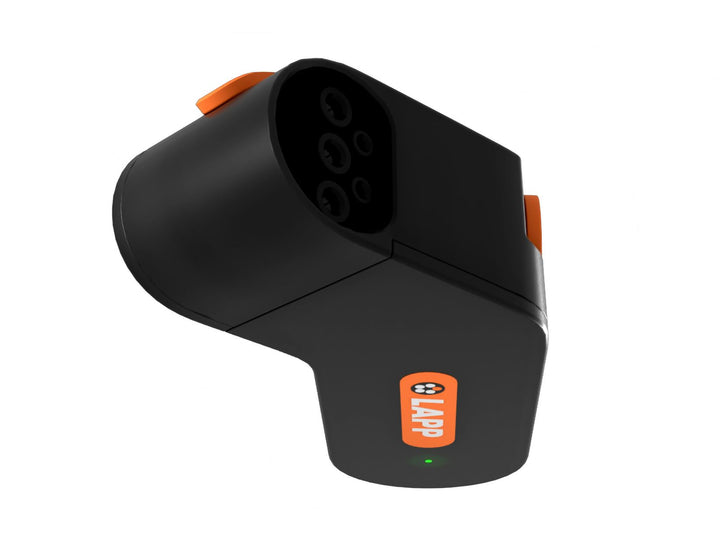

- Socket for mode 3 charging cable (IEC 62196)
- Charging power up to 2.3 Kw, automatically adjusting
- Protection rating IP44, connected IP44 (charger, connector/coupling)
- Socket distance support lever

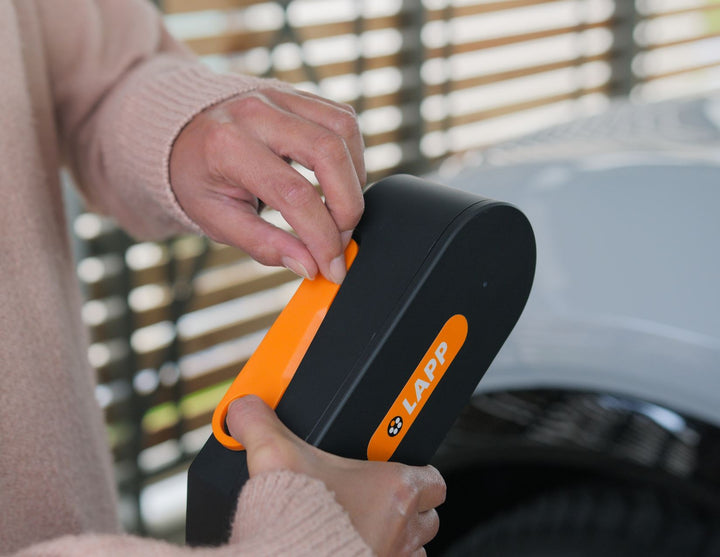

- Release lever for easy disconnection
- Gyro sensor for vertical position monitoring

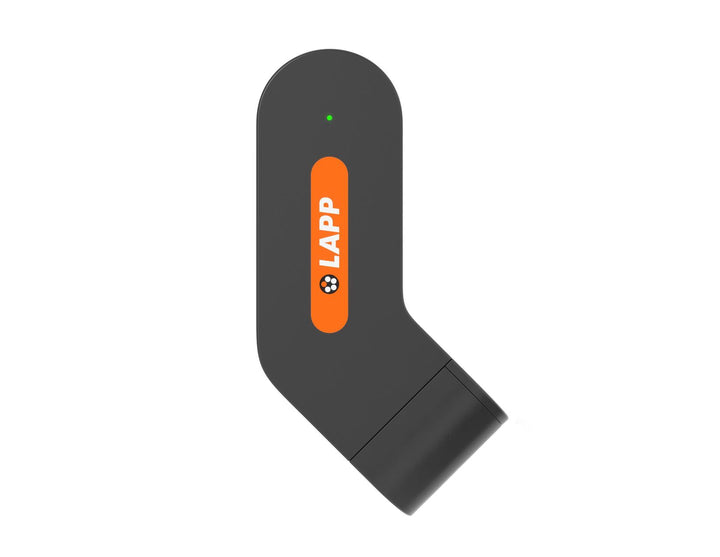

- LED status indication
- Self-test on start
- Residual current detection (AC) - immediately disconnects in the event of potentially fatal AC faults
- Residual current detection (DC) - provides effective protection against DC faults, so that upstream type A RCDs do not become blind
- Charge monitoring to vehicle
- Continuous protective earth
- Relay monitoring
- Overcurrent detection
- Over and under voltage detection
- Flame retardant, oil resistant and halogen free
- Includes power connector dust cap and operating instructions
- Space saving storage with compact design
- Ambient temperature -25°C to +45°C
- Dimensions 255 x 135 x 96 mm
- Weight: 750 g
These are products that require specialist knowledge and/or special tools for installation. The products are not intended for self-assembly without this specialist knowledge. If necessary, please contact an authorized Ford service centre or another qualified specialist workshop regarding installation.
